CellRendererProgress


Object Hierarchy:

Gtk.CellRendererProgress Gtk.CellRendererProgress Gtk.CellRendererProgress Gtk.CellRenderer Gtk.CellRenderer Gtk.CellRenderer->Gtk.CellRendererProgress GLib.InitiallyUnowned GLib.InitiallyUnowned GLib.InitiallyUnowned->Gtk.CellRenderer GLib.Object GLib.Object GLib.Object->GLib.InitiallyUnowned Gtk.Orientable Gtk.Orientable Gtk.Orientable->Gtk.CellRendererProgress

Description:

[ CCode ( type_id = "gtk_cell_renderer_progress_get_type ()" ) ]
public class CellRendererProgress : CellRenderer, Orientable

CellRendererProgress renders a numeric value as a progress par in a cell.

Additionally, it can display a text on top of the progress bar.

The CellRendererProgress cell renderer was added in GTK+ 2.6.

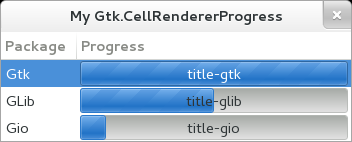

Example: CellRendererProgress:

public class Application : Gtk.Window {
public Application () {
// Prepare Gtk.Window:
this.title = "My Gtk.CellRendererProgress";
this.window_position = Gtk.WindowPosition.CENTER;
this.destroy.connect (Gtk.main_quit);
this.set_default_size (350, 70);

// The Model:
Gtk.ListStore list_store = new Gtk.ListStore (3, typeof (string), typeof (string), typeof (int));
Gtk.TreeIter iter;

list_store.append (out iter);
list_store.set (iter, 0, "Gtk", 1, "title-gtk", 2, 100);
list_store.append (out iter);
list_store.set (iter, 0, "GLib", 1, "title-glib", 2, 50);
list_store.append (out iter);
list_store.set (iter, 0, "Gio", 1, "title-gio", 2, 10);

// The View:
Gtk.CellRenderer cell = new Gtk.CellRendererText ();
Gtk.TreeView view = new Gtk.TreeView.with_model (list_store);
this.add (view);

view.insert_column_with_attributes (-1, "Package", cell, "text", 0);

Gtk.CellRendererProgress progress = new Gtk.CellRendererProgress ();
Gtk.TreeViewColumn column = new Gtk.TreeViewColumn ();
column.set_title ("Progress");
column.pack_start (progress, false);
column.add_attribute (progress, "text", 1);
column.add_attribute (progress, "value", 2);
view.append_column (column);
}

public static int main (string[] args) {
Gtk.init (ref args);

Application app = new Application ();
app.show_all ();
Gtk.main ();
return 0;
}
}

valac --pkg gtk+-3.0 Gtk.CellRendererProgress.vala


Namespace: Gtk
Package: gtk+-3.0

Content:

Properties:

Creation methods:

Inherited Members:

All known members inherited from interface Gtk.Orientable
